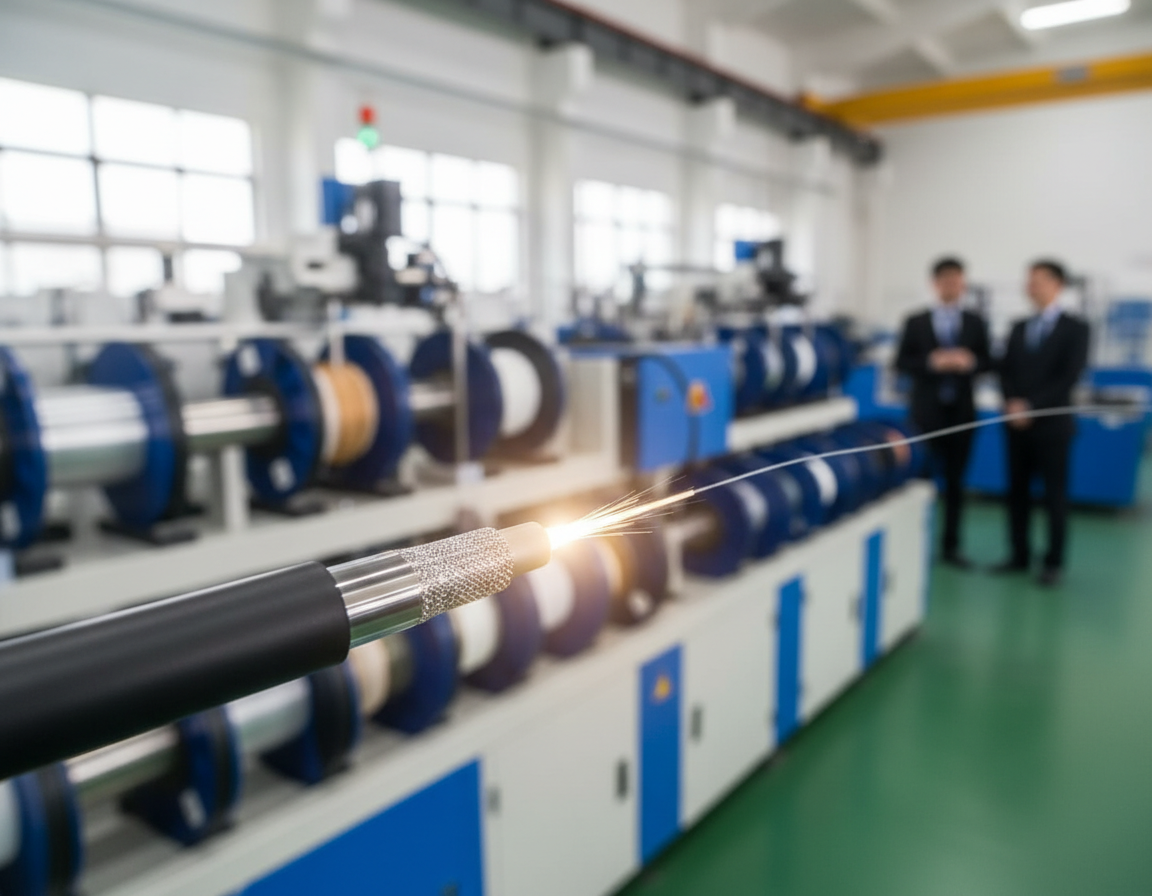

The FTTH Cable Production line is a coordinated suite of modules that transforms fiber optic glass into ready-to-ship drop and distribution outputs with reliable uniform quality.
Compact Fiber Unit
This introduction guides factory managers, production engineers, purchasing teams, and learners in the United States who review how industrial manufacturing equipment shapes fragile fiber into robust cables for service and communication networks.
At the heart of the line, the full-chain objective is straightforward: shield the fiber, keep attenuation low, add strength for installation, and deliver a product that withstands inside and outside exposure.
Top-tier equipment delivers steady tension control, synchronized motion control, defined process windows, and clear, auditable documentation for acceptance testing. This article helps pair the right line configuration, materials, and test plan to the desired cable design instead of purchasing machines first and fixing the process later.
You’ll map stages such as fiber handling and preparation, secondary coating/buffering, stranding, strength member integration, sheathing (outer jacket extrusion), optional armoring, and final testing and packaging.
Key takeaways include: A well-specified line reduces defects and keeps delivery schedules predictable. Choose process alignment before purchasing machines to reduce time and cost.
How A Fiber Optic Cable Production Line Works Today
Where last-mile drop and distribution requirements meet shop-floor execution.
Modern fiber manufacturing lines stitch delicate glass into finished products used in U.S. broadband rollouts. Last-mile drop cable and FTTH drop demand drives high volumes, so manufacturers emphasize repeatable handling methods and standards-based output.
Core Modules & Material Flow
Material moves through a clear sequence: pay-off feed → guiding/tensioning → secondary coating/color application → organization and SZ stranding → strength-element feed → jacketing and sheathing → cooling and curing → take-up plus testing.
Modules And Outcomes
Stable fiber handling reduces attenuation and protects signal integrity for data and communications. Consistent jacketing helps installation and connector preparation. In-line monitors detect loss events before reels leave the line.
- Indoor vs. outdoor applications: different buffering and jacket compounds.
- Armored designs add steel tape or wire for added crush and rodent resistance.
- Drop designs typically use tight-buffered fibers and easier connector preparation.
Buyers should view lines as modular. Factories add armoring or omit steps to match the product type. Throughput limits come from curing and dimensional control, not just motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Begin with a clear product map that specifies the cable type, core count, intended service environment, and target user scenarios. Early definition limits which modules the line needs, from tight-buffer units to SZ stranding and jacket extrusion.
Select Standards, Measurable Targets
Choose fiber standards such as ITU-T G.652D or bend-insensitive G.657A1/A2 based on required bend performance and routing. Define loss budgets, tensile targets, crush and bend limits, and environmental durability before vendor selection.
- Identify the precise product type and fiber/core count so you can define modules and control requirements.
- Specify attenuation (loss) budgets and mechanical strength targets to guide material choice.
- Define required materials (buffer polymers, jacket compounds) and confirm supplier availability in the U.S.
Data Standards, Traceability & Validation
Turn targets into factory-ready information: logged process variables, lot traceability, and required customer test reports for acceptance. Plan R&D pilot runs to validate settings and reduce scale-up time.
Fiber Coloring Machine
| Objective | Factory Implication | Typical Action |
|---|---|---|
| Minimal attenuation | Tension + alignment control | Inline attenuation checks |
| Higher tensile strength | Strength member selection | Aramid or metal integration |
| Bend-tolerant performance | Choice of fiber type | Adopt G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding, And Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design set the limits for signal loss.
Core + cladding form the central layer structure: a solid ultra-pure silica core carries light while lower-index cladding keeps it confined. This geometry underpins low-loss transmission and stable optical behavior once cabled.
From Preform To Fiber Draw
Manufacturing starts with preform laydown and consolidation. Removing moisture in a high-temperature furnace reduces defects that raise attenuation.
The draw process pulls glass into a micron-scale strand. Geometry control at this stage links directly to steady attenuation and predictable transmission performance. A single blank can produce about 5 km of fiber, so process stability saves time and cost.
Primary Coating, Color Coding
Primary coating protects against scratches and handling damage; it is not the main tensile element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension to keep loss low.
- Coating and color: protect and label each fiber.
| Layer Type | Purpose | Buyer Verification |
|---|---|---|
| Fiber core | Transmit light while minimizing attenuation | Specify purity and loss specifications |
| Cladding | Confine light and control modal behavior | Verify index profile and geometry |
| Primary coating | Scratch protection; color identification | Verify coating adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A practical line setup takes each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and 1–12 channel color coding for traceability. Consistent UV cure rates and steady web tension reduce mix-ups and rework.
Buffering, Materials
Tight buffering (600–900 µm) improves handling and simplifies connector work. Choice of Hytrel, PVC, or LSZH changes flexibility, temp range, and flame/smoke behavior.
SZ Stranding & Organization
SZ stranding uses an alternating lay to balance geometry and provide flexibility. Servo control (up to 24 fibers) keeps lay pitch consistent and lowers loss risk.
Strength Members And Jacketing
Aramid yarn is a common tensile element; it provides pull strength without stressing the fibers during installation.
Next comes outer jacket extrusion with PVC, PE, or LSZH. Speeds typically range 60–90 m/min and require tight OD and concentricity control.
Armoring, Control Points
Where crush or rodent resistance is needed, add steel tape or wire armor with adjustable tension control. Operators monitor tension, cure state, concentricity, OD, and cooling to maintain quality.
| Process Step | Key Control Point | Typical Range |
|---|---|---|
| Secondary coating process | UV cure plus tension | ≈250 µm, high cure consistency |
| Tight buffer stage | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Sheathing | Concentricity and OD | 60–90 m/min |
Optimize Production Speed & Process Control With Modern Automation
When factories run for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and record process information. Closed-loop tension control protects fiber during start, stop, and speed changes.
Fiber Coloring Machine
Match Speed To Curing And Dimensional Control
Line speed often caps where curing, cooling, or extrusion dimensional control cannot keep up. UV cure completeness, water trough stability, and chill capacity set the real ceiling.
Layout, Changeover, And Procurement
Plant layout impacts uptime: proper pay-off/take-up placement plus protected fiber paths reduce damage and shorten changeovers.
- Use quick-change tooling and documented setup steps to speed changeovers.
- When ordering equipment, specify industrial power (380 V AC ±10%) and typical load ≤55 kW.
- Demand remote diagnostics, spare parts availability, and fast service response from the equipment company.
| Focus | Operational Benefit | Typical Goal |
|---|---|---|
| Module synchronization | Reduced scrap and repeatable runs | Siemens PLC/HMI |
| Tension regulation | Protects fiber; keeps loss stable | Closed-loop, high accuracy |
| Layout/changeover | Less downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control convert raw fiber into reliable, field-ready cable reels.
Start with optical verification. In-line attenuation testing plus return loss checks confirm signal performance before reels ship.
Optical Checks And Signal Integrity
Attenuation testing is the main guardrail against performance complaints. Higher loss readings often indicate handling damage, microbends, or contamination.
Return loss checks target reflections that can affect sensitive links and tight network margins.
Mechanical, Environmental Validation
- Tensile pull tests verify strength members and installation safety.
- Crush and bend tests simulate real-world installation stresses.
- Temperature cycling, moisture soak, and vibration testing de-risk outdoor and aerial deployments.
| Validation Test | Objective | Typical Result |
|---|---|---|
| Attenuation | Measure loss per km | Pass/fail vs. spec |
| Mechanical | Validate pull, crush, bend | Installation performance rating |
| Environmental tests | Recreate field conditions | Durability confirmed |
Traceability ties raw material lots, in-line data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Conclusion
A strong manufacturing plan connects product targets with the line modules and control limits needed for reliable output. Specify the FTTH product, service environment, and measurable specs before selecting equipment or finalizing layout.
Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful handling upstream preserves data integrity and keeps end-product quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: use comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels fast. Next step: turn these points into a purchasing checklist (spec targets, utilities, layout, acceptance tests) before you request quotes or trials.
